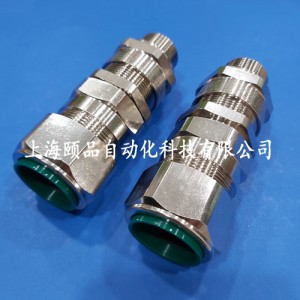

英國CMP鎧裝防爆格蘭E1FW系列（CMP cable gland）

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

E1FW | Ex eb, Ex db, Ex nR, Ex ta, Explosive Atmosphere Cable Gland

For all types of Steel & Aluminium Wire Armoured Cables

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆葛蘭，CMP防爆填料函，CMP防爆密封接頭

CMP非鎧防爆格蘭，CMP鎧裝防爆格蘭，CMP防爆變徑，CMP防爆呼吸閥堵頭

Internationally Approved, Explosive Atmosphere Cable Gland

• metal-to-metal armour clamping

• Direct & remote installation

• Displacement type flameproof inner seal

• Controlled outer ‘load retention’ seal

• Unique OSTG prevents overtightening

• Designed to prevent Coldflow, see CMP Technical document TS001 (available upon request)

• -60°C to +130°C

• Class I Zone 1, 21 ａnd Zone 2, 22 Class I Division 2 ABCD

• Globally marked, IECEx, ATEX & cCSAus

• Superior EMC performance

Note: † Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) ａnd Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) ａnd Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).

Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below.

CERTIFICATES

PRODUCT SELECTION TABLE

CLICK HERE TO VIEW HOW TO ORDER

Cable Gland Size	Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter ＇A＇		Overall Cable Diameter ＇B＇		Armour Range † Grooved Cone (X)		Across Flats ＇D＇	Across Corners ＇D＇	Protrusion Length ＇F＇	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Cable Bedding Diameter ＇A＇		Overall Cable Diameter ＇B＇		Armour Range † Grooved Cone (X)		Across Flats ＇D＇	Across Corners ＇D＇		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ＇E＇	NPT	Thread Length (NPT) ＇E＇	NPT	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½＇	19.9	¾"	3.1	8.6	6.1	13.1	0.3	1.0	24.0	26.4	72.5	20S16	E1FW	1RA	PVC04	0.16
20S	M20	15.0	½＇	19.9	¾"	6.1	11.6	9.5	15.9	0.3	1.0	24.0	26.4	70.0	20S	E1FW	1RA	PVC04	0.15
20	M20	15.0	½＇	19.9	¾"	6.5	13.9	12.5	20.9	0.4	1.0	30.5	33.6	73.0	20	E1FW	1RA	PVC06	0.21
25S	M25	15.0	¾＇	20.2	1"	11.1	19.9	14.0	22.0	0.4	1.2	37.5	41.3	89.0	25S	E1FW	1RA	PVC09	0.33
25	M25	15.0	¾＇	20.2	1"	11.1	19.9	18.2	26.2	0.4	1.2	37.5	41.3	89.0	25	E1FW	1RA	PVC09	0.33
32	M32	15.0	1＇	25.0	1 ¼"	17.0	26.2	23.7	33.9	0.4	1.2	46.0	50.6	86.0	32	E1FW	1RA	PVC11	0.43
40	M40	15.0	1 ¼＇	25.6	1 ½"	22.0	32.1	27.9	40.4	0.4	1.6	55.0	60.5	90.0	40	E1FW	1RA	PVC15	0.62
50S	M50	15.0	1 ½＇	26.1	2"	29.5	38.1	35.2	46.7	0.4	1.6	60.0	66.0	91.0	50S	E1FW	1RA	PVC18	0.75
50	M50	15.0	2＇	26.9	2 ½"	35.6	44.0	40.4	53.0	0.6	1.6	70.1	77.1	95.0	50	E1FW	1RA	PVC21	0.95
63S	M63	15.0	2＇	26.9	2 ½"	40.1	49.9	45.6	59.4	0.6	1.6	75.0	82.5	102.0	63S	E1FW	1RA	PVC23	1.34
63	M63	15.0	2 ½＇	39.9	3"	47.2	55.9	54.6	65.8	0.6	1.6	80.0	88.0	104.0	63	E1FW	1RA	PVC25	1.34
75S	M75	15.0	2 ½＇	39.9	3"	52.8	61.9	59.0	72.0	0.6	1.6	90.0	99.0	115.0	75S	E1FW	1RA	PVC28	2.11
75	M75	15.0	3＇	41.5	3 ½"	59.1	67.9	66.7	78.4	0.6	1.6	100.0	110.0	117.0	75	E1FW	1RA	PVC30	2.42
90	M90	24.0	3 ½＇	42.8	4"	66.6	78.6	76.2	90.3	0.8	1.6	114.3	125.4	147.0	90	E1FW	1RA	PVC32	4.21
100	M100	24.0	3 ½＇	42.8	4"	76.0	90.9	86.1	101.4	0.8	1.6	123.0	135.3	140.0	100	E1FW	1RA	LSF33	4.45
115	M115	24.0	4"	44.0	5"	86.0	97.9	101.5	110.2	0.8	1.6	133.4	146.7	162.0	115	E1FW	1RA	LSF34	6.19
130	M130	24.0	5"	46.8	-	97.0	114.9	110.2	123.2	0.8	1.6	152.4	167.6	174.0	130	E1FW	1RA	LSF35	8.34
Dimensions displayed in millimeters unless otherwise stated

TECHNICAL ILLUSTRATION

CMP防爆格蘭（CMP Cable Gland）

Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥

CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司
